| Space3d Project | ||||||||||
| The Space3d Library uses Recursive Composition design pattern.
The hierarchy by reference, built into the component, plays a dual role
in modeling three-dimensional space: first, it provides a control over a
lifetime of the object cluster; second, it mirrors a subordination of the object
coordinate systems.
Project is built with Visual Studio, using .NET Framework 4.7.1 Project references:
| ||||||||||
| Graphics Project | ||||||||||
| Grapnics Library is a layer of abstraction between a client and particular
graphics platform, on which the library is implemented. This particular implementation
is built on top of OpenTK, the C# library that wraps OpenGL. The intended clients are
technical and engineering graphics applications that require three-dimensional visualization tool.
The implementation draws a scene on separate working thread, optionally, the thread-updater may be invoked. It features:
OpenGL Site OpenTK Site Project is built with Visual Studio, using .NET Framework 4.7.1 Project references:
| ||||||||||
| Examples and use cases | ||||||||||
| There is a solution project, named Space3d.sln, under Space3d folder.
It serves as a proof of concept, with 3D objects implemented according to the component's framework.
Also, there is another soluton, Graphics.sln, under Graphics folder, which implements
3D rendering engine.

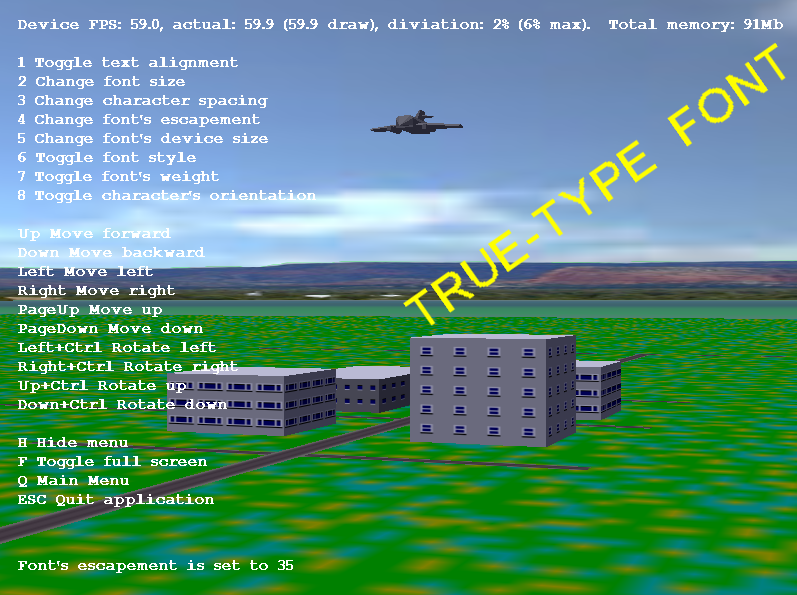

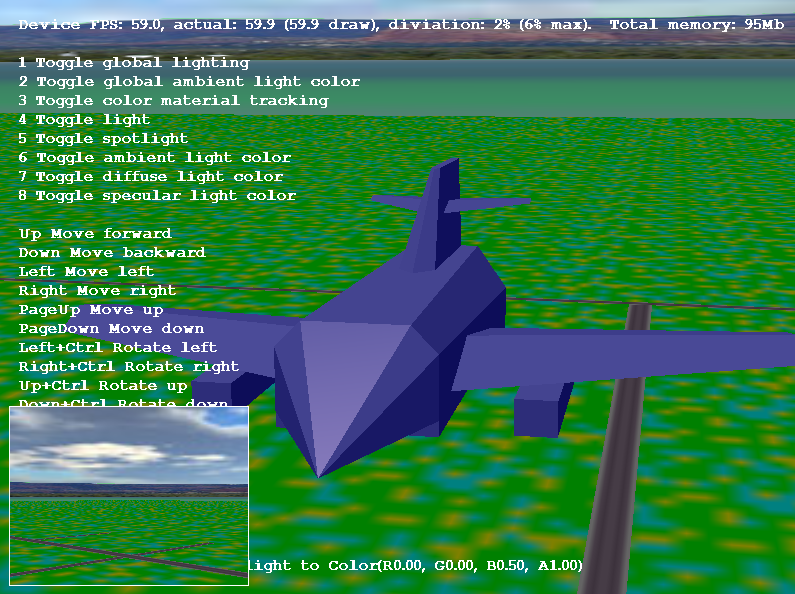

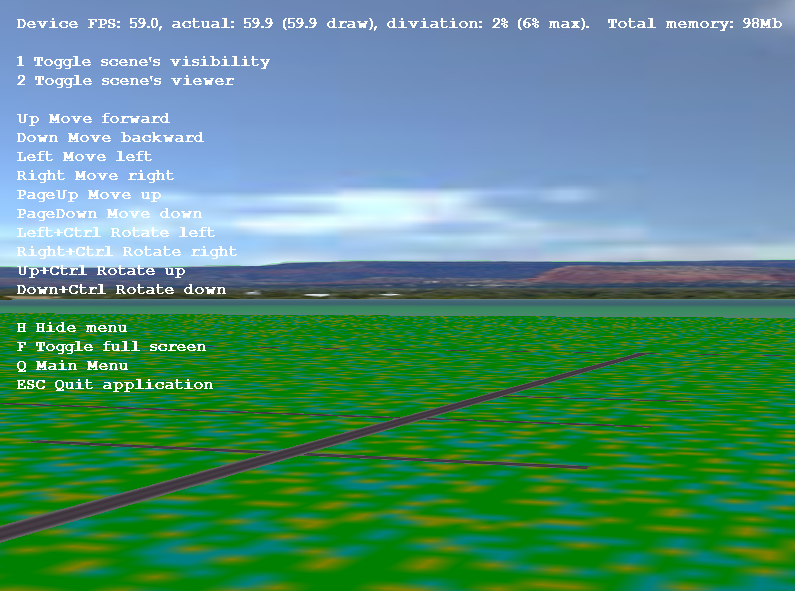

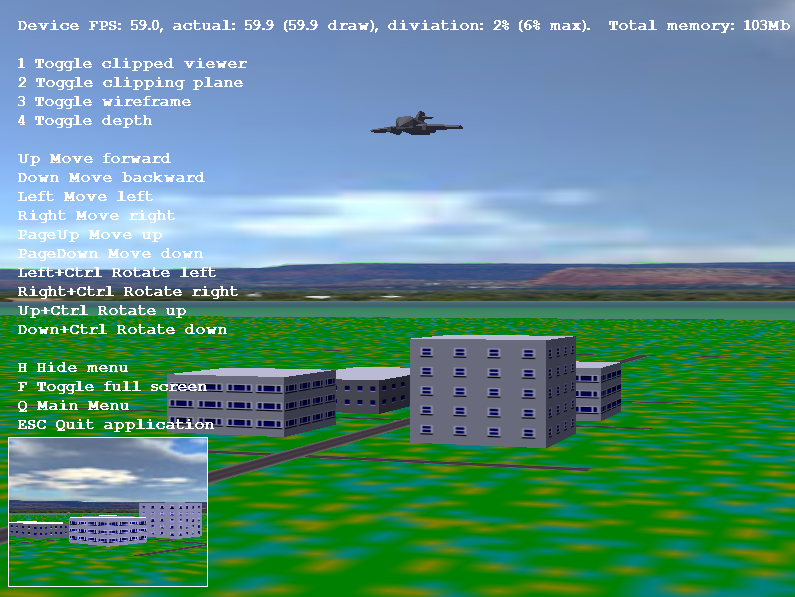

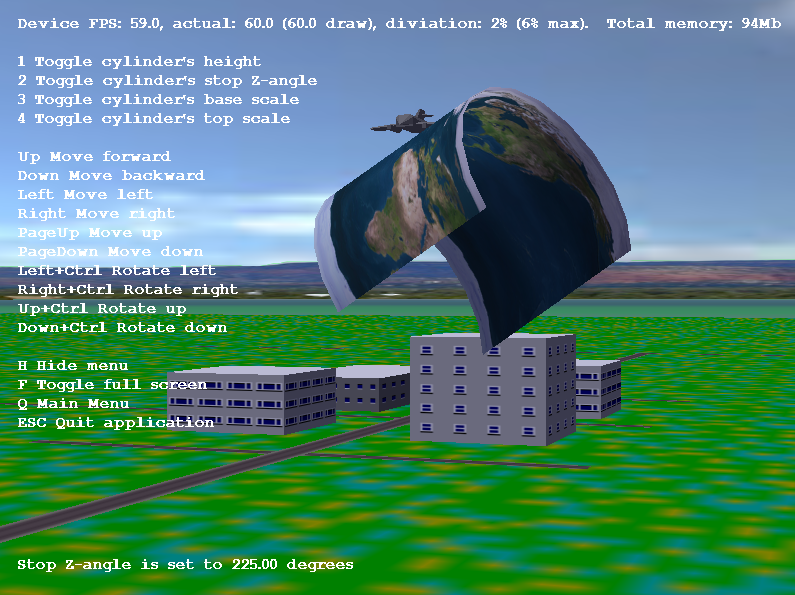

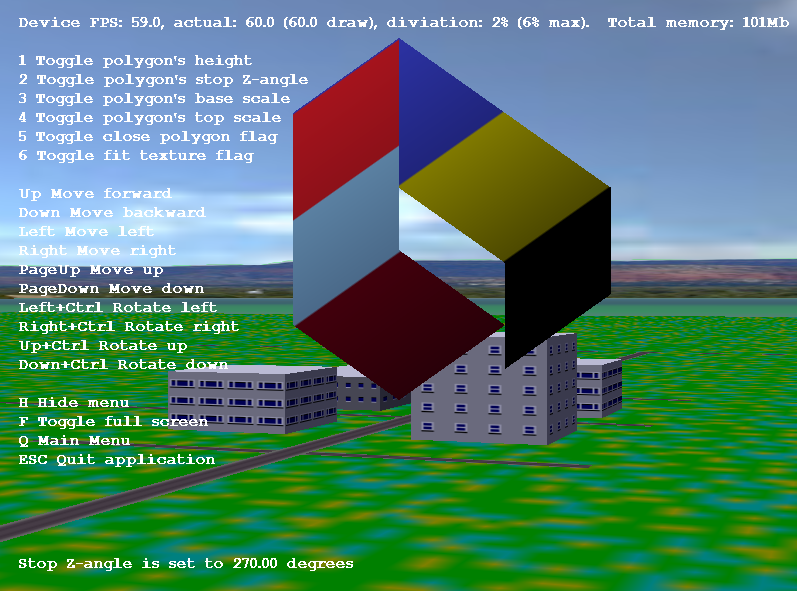

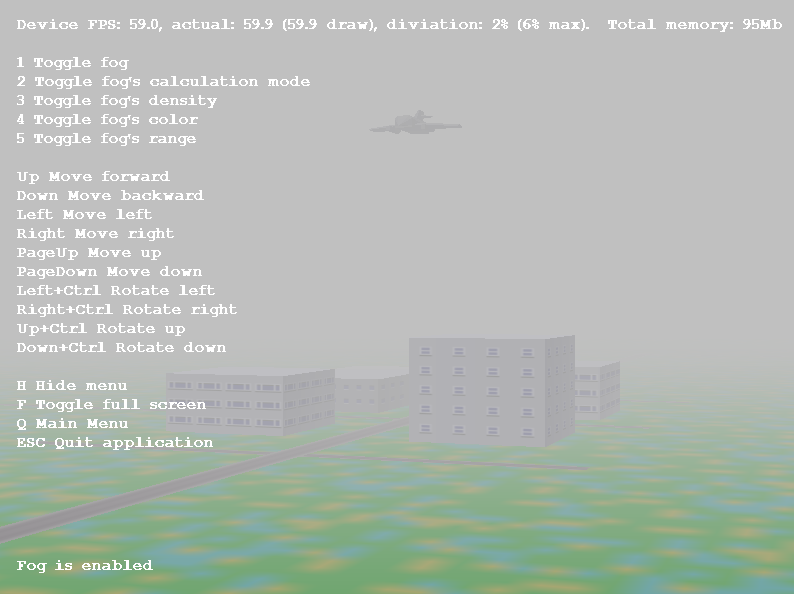

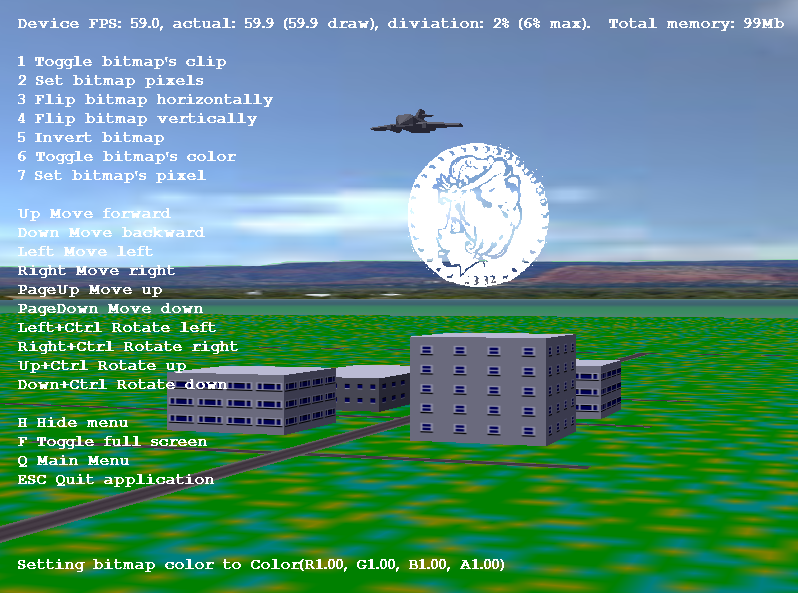

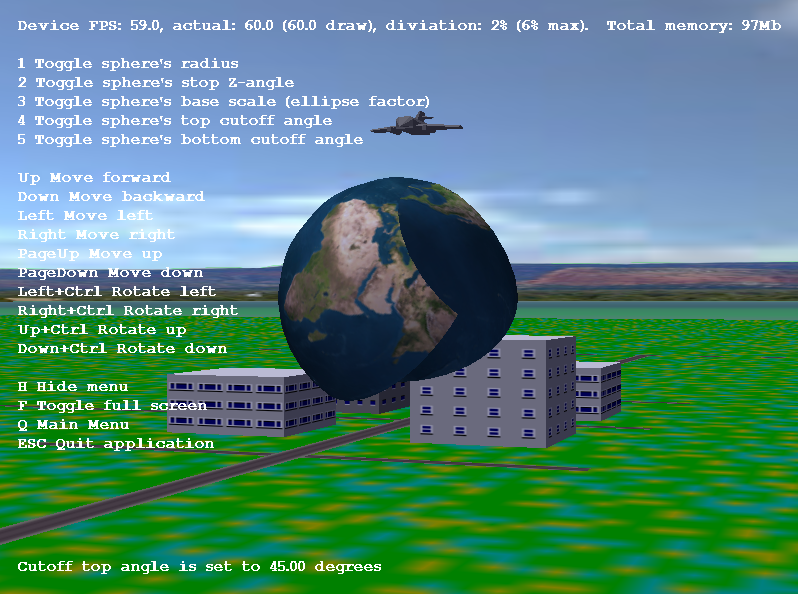

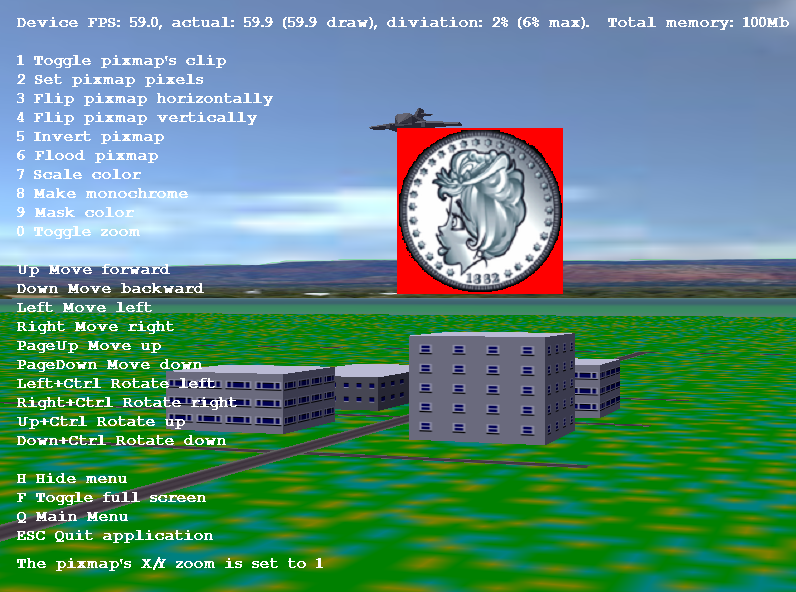

To test the Space3d Library, compile and run the Space3dTest project. To test the graphics capabilities, compile and run the GraphicsTest project. Here is how the Graphics Menu is implemented: | ||||||||||
| ||||||||||
|
